Solved FEA Pack 42 (Cases 411-420)

Get these FEA or CFD files to see the settings we used for materials, mesh, contacts, loads, time steps, solver etc. On this page you find only MECHDAT, DSCO or WBPZ files with 3D models, while the PDF tutorials are found on the TUTORIALS pages!

ANSYS 2024 R2 OR HIGHER

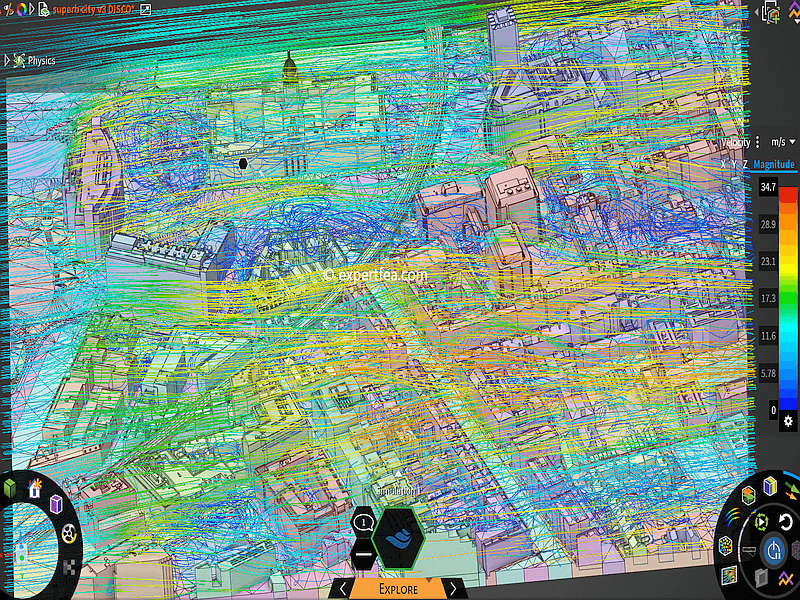

411. CFD Fluid Mechanics Simulation of Strong Winds in Dublin City Center and Buildings - ANSYS Discovery

Click for video with results on

If you have ANSYS Discovery 2024 R2 or higher, get the solved file with 3D model for only $19

ANSYS 2022 R1 OR HIGHER

412. FEA of a Cervical Stent which Dilates to Facilitate Medical Intervention - ANSYS Explicit Dynamics

Click for video with results on

If you have ANSYS Workbench 2022 R1 or higher, get the solved file with 3D model for only $20

ANSYS 2022 R1 OR HIGHER

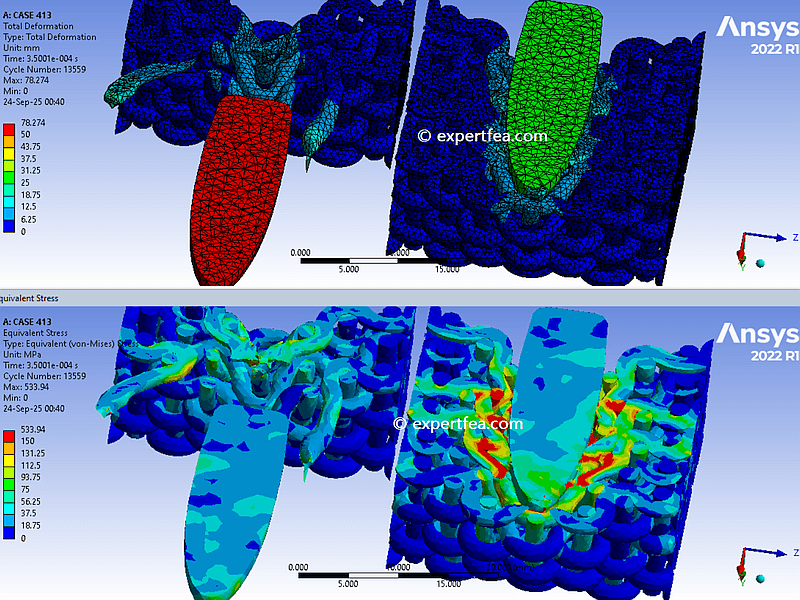

413. FEA of Bullets of Same Speed Being Stopped with Multiple Layers of Yarn - ANSYS WB Explicit Dynamics

Click for video with results on

If you have ANSYS Workbench 2022 R1 or higher, get the solved file with 3D model for only $21

ANSYS 2022 R1 OR HIGHER

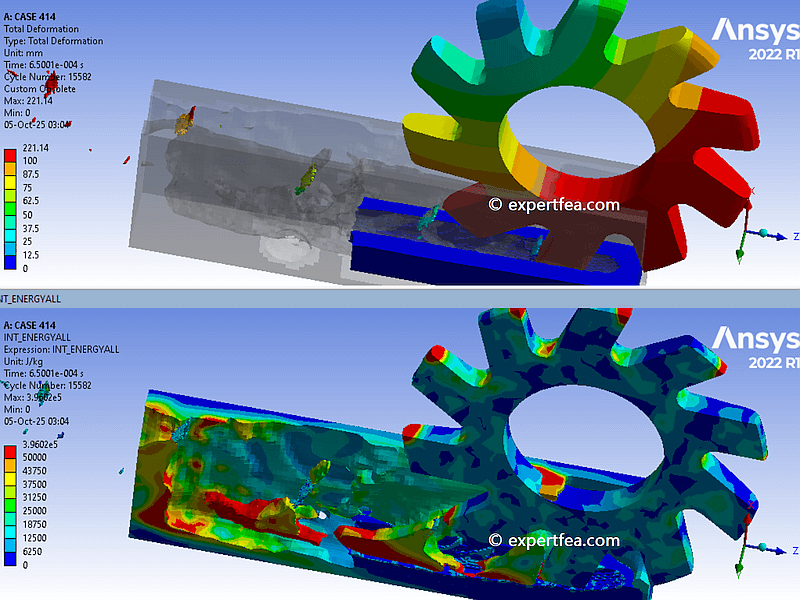

414. FEA of Milling a Copper Slab Submerged in Water with Heat Reduction - ANSYS WB Explicit Dynamics

Click for video with results on

If you have ANSYS Workbench 2022 R1 or higher, get the solved file with 3D model for only $22

☆ The simulation that you purchased is already solved in most cases, and it contains the setup and the results seen in the respective YouTube clips. If the solved scenario was too big for full upload (more than 1.5 GB), just click the Solution branch, Clear Generated Data, then Solve.

☆ BE SURE TO HAVE THE SAME OR EVEN A MORE RECENT ANSYS VERSION, BECAUSE OLDER ANSYS VERSIONS WILL NOT OPEN NEWER ANSYS FILES!
